Lifting Robot

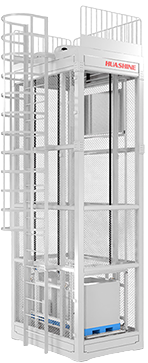

reciprocating vertical conveyer
PRODUCT CHARACTERISTICS
PRODUCT CHARACTERISTICS
-
Reciprocating elevators can be divided into Z-type, C-type, E-type, and F-type according to the direction of import and export transportation
-
The up and down travel of the elevator car can transport materials, and during one cycle of the elevator car, materials can flow in both directions simultaneously
| Light load parameters | notes |
| lifting speed | <60m> |
| Lift stroke | 0－25m |
| Lifting acceleration | 0.5m/s² |
| locate mode | photoelectricity/laser |
| positioning accuracy | ±5mm |
| load | < 2000Kg |
| Maximum conveying cycle time | >15s/Item (depending on the itinerary) |
| operating mode | online/semi-automatic/hand movement |
| Overload parameters | notes |
| lifting speed | <15m> |
| Lift stroke | 0－25m |
| Lifting acceleration | 0.3m/s² |
| locate mode | photoelectricity/laser |
| positioning accuracy | ±5mm |
| load | < 4000Kg |
| Maximum conveying cycle time | >15s/Item (depending on the itinerary) |
| operating mode | online/semi-automatic/hand movement |
